Luxor - Cloud | Range

Large-format clouds for large spaces
Performance

Equivalent absorption area per unit (m2 sabine) ) Aeq - 200 mm distance / 400 mm distance / 1000 mm distance

Features

Type:
Absorber

Absorption Range:
350 Hz to 5000 Hz

Acoustic Class:
B | (aw) = 0.85

Purpose
- RT reduction
- Flutter echo control
- Improving speech intelligibility
- Effective broadband absorption

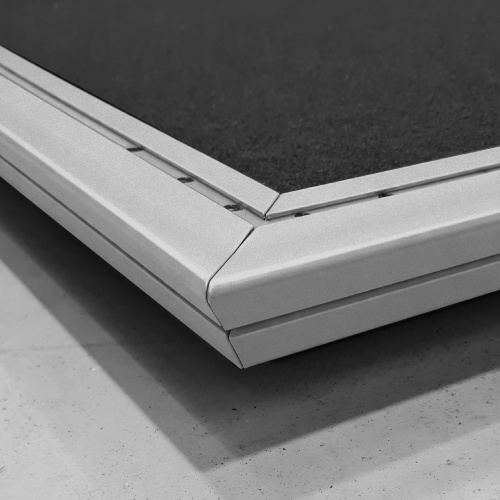

Luxor Cloud is defined by Artnovion’s proprietary aluminium frame with a 45-degree profile. Luxor Cloud combines an inclined aluminium structure with a recycled PET absorber core and a fabric front. The angled profile remains hidden beneath the fabric, creating a more uniform appearance.

Luxor Cloud is designed to improve acoustics in large, open spaces where wall treatment is limited. Ideal for environments such as open offices and restaurants, it treats ceiling reflections effectively. The aluminium structure allows for easy installation, resists temperature and humidity changes, and supports large panel sizes.

Recommended for
- Office Meeting Room
- Conference Room
- Open Workspace
- Lobbies
Noise in healthcare facilities is a well know problem with serious consequences. Acoustic levels in today’s hospitals are the highest ever documented and have a tremendous impact on the privacy, comfort and stress levels of patients and staff. Even in well-being spaces, such as gyms, pools or spas; acoustic comfort plays a huge role in how beneficial and enjoyable our experience is.

Infection control has always been a concern, particularly for Healthcare and Wellbeing Environments, but now, every industry faces the need for solutions that help ensure a “Covid-safe” workplace. Artnovion’s MEDLINE-Cleanable products were specifically designed to face this challenge.

The Twill acoustic fabric finish used in this panel endures regular cleaning and disinfection with highly effective antibacterial and antiviral agents like alcohol solutions, bleach solutions, or sterilizing sprays and wipes.

Notice: COVID-19 Safe (cleanable) only available on the Twill Finish. Find the Cleaning instructions here .
______

This product is available in the following Fire Rates:
FR | Fire Rated
FR | Fire Rated & COVID-19 Safe


PRODUCT COMPOSITION:

Luxor - Cloud | Felted Acoustic Fabric (FR)
- Felted Acoustic Fabric
- Aluminium structural frame*
- Sound PET acoustic core - Euro Class B

Luxor - Cloud | Twill Acoustic Fabric (FR & Covid-19 Safe)
- Twill Acoustic Fabric
- Aluminium structural frame*
- Sound PET acoustic core - Euro Class B

Luxor - Cloud | Print Fire Retardant Acoustic Fabric
- Fire Retardant Acoustic Fabric
- Aluminium structural frame*
- Sound PET acoustic core - Euro Class B

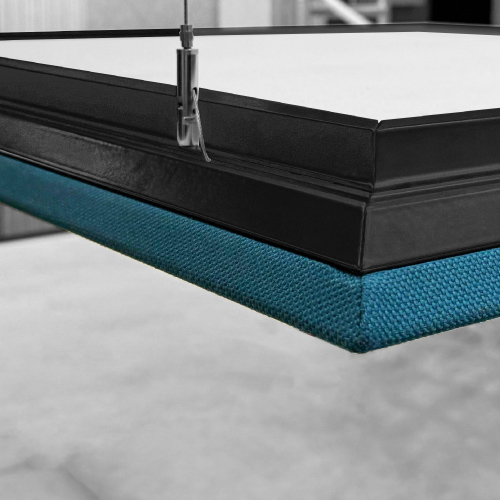

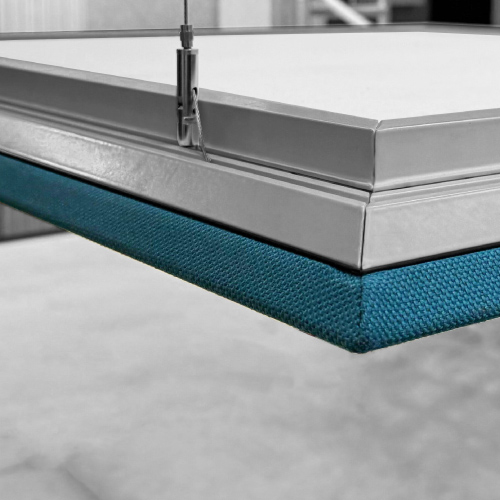

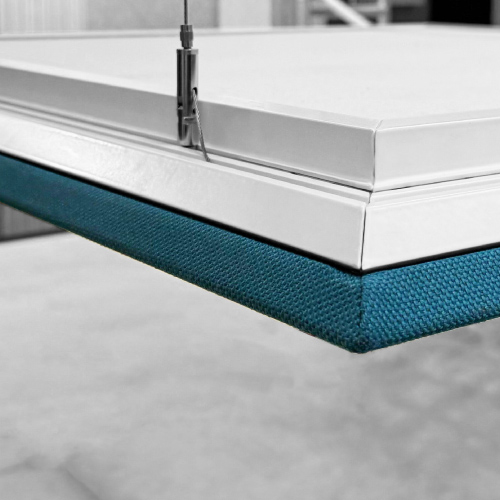

* Available in Aluminium colour, black or white finish.

______


Range Dimensions:
- Luxor Cloud - Double SQR | 1320x1320x60mm
- Luxor Cloud - Double Max | 1320x2400x60mm
- Luxor Cloud - Double XL | 1320x1785x60mm

Luxor - Cloud | Range

Overview

Features
Type:
Absorber

Absorption Range:
350 Hz to 5000 Hz

Acoustic Class:
B | (aw) = 0.85
Purpose
- RT reduction
- Flutter echo control
- Improving speech intelligibility
- Effective broadband absorption
Recommended for
- Office Meeting Room
- Conference Room
- Open Workspace
- Lobbies
Dimensions:
0x0x0mm
Fixing Systems

Luxor - Cloud | Range has an integrated fixing system

Available Finishes:

(FR - TT) Felted Fabric Finishes
() Frame (FR - PP) Printed Fabric Finishes (FR - TF) Twill Fabric Finishes | COVID-19 Safe (cleanable)

Configure your product and contact us for more information
