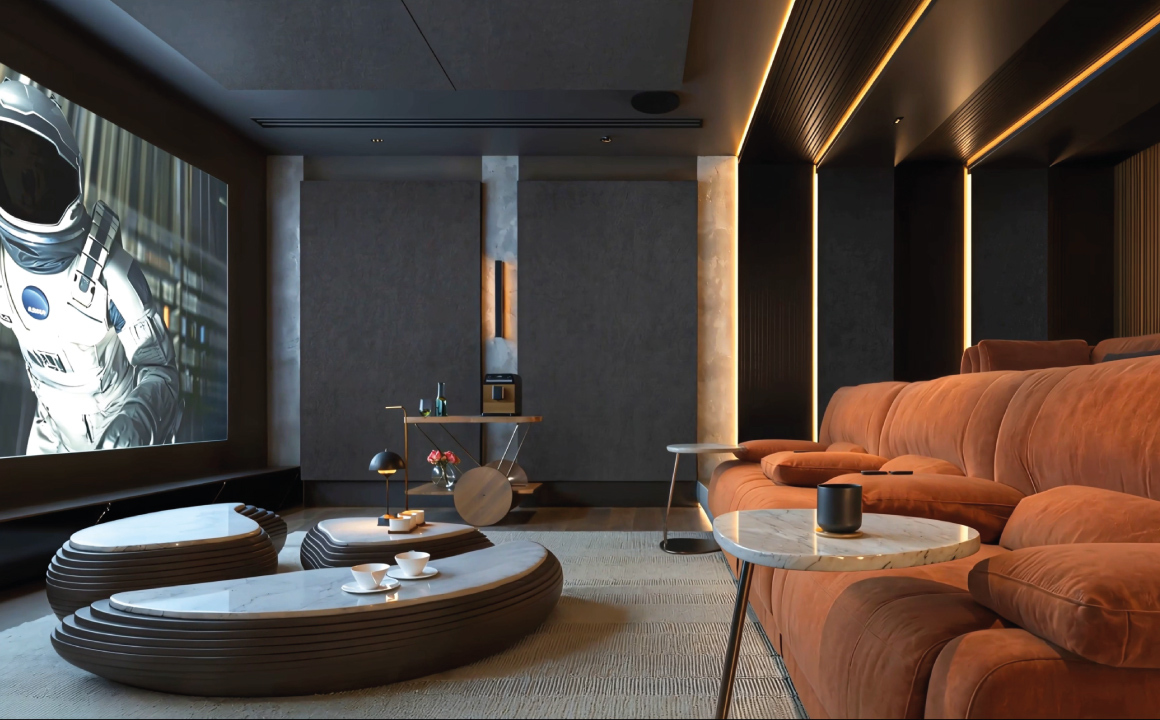

Cinema Series.

We envisioned a new way of creating Home Cinemas. The Cinema Series combines inspiring patterns, colour palettes and remarkable acoustic performance.

Discover more

Inspiring yet subtly playful.

Valley CS & Siena CS | Designed to inspire and explore creativity

Embrace your acoustic comfort.

Komodo CS | Designed to rethink contemporary design

Valley CS

Designed for subtly playful yet inspiring creations.
Valley CS is a distinctive and highly efficient absorber that plays with geometric patterns to create abstract shapes. Different elements can be connected
in a variety of geometric patterns to generate unpredictable and (a)symmetric designs using a discreet modular installation system. This modular system
uses four different wooden cores: an Absorber, Diffuser, Bass Trap, and Speaker options. Each provides distinct functionality while keeping the same design.
The acoustic covers can be easily swapped or replaced.

Absorbers remove energy from incoming sound waves, reducing reflections and overall reverberation time. Diffusers scatter energy over a wide area,
creating more homogeneous sound fields. Bass Traps reduce low frequency room modes, diminishing the effect of standing waves. Frame cores
seamlessly integrate in-wall speakers. Discover our Cinema Series, a flexible range that can be adapted to a wide variety of environments and is
tailored into beautiful, timeless, multifunctional designs.
Valley CS + Absorber Core
Absorption Range: 200 Hz to 8000 Hz
Acoustic Class: B | (aw) = 0,8
______

Valley CS + Bass Trap Core
Absorption Range: 100 Hz to 125 Hz
______

Valley CS + Diffuser Core
Scattering Range: 1000 Hz to 8000 Hz
- First reflection Control
- RT reduction
- Extended mid-low frequency absorption
- Flutter echo control
- Reducing excessive reverberation
- Improving speech intelligibility
- Home Cinemas
- Media Rooms
Valley CS + Absorber Core / Valley CS + Diffuser Core (diffusion coefficient) / Valley CS + Diffuser Core (scattering coefficient) / Valley CS + Bass Trap Core

Overview

Dimensions:

FG - SF | 595x595x72mm

FG - WF | 595x595x72mm

Fixing Systems

Valley CS has an integrated fixing system

Available Finishes:

(FG - SF) Suede Fabric Finishes
(FG - WF) Weave Fabric Finishes
